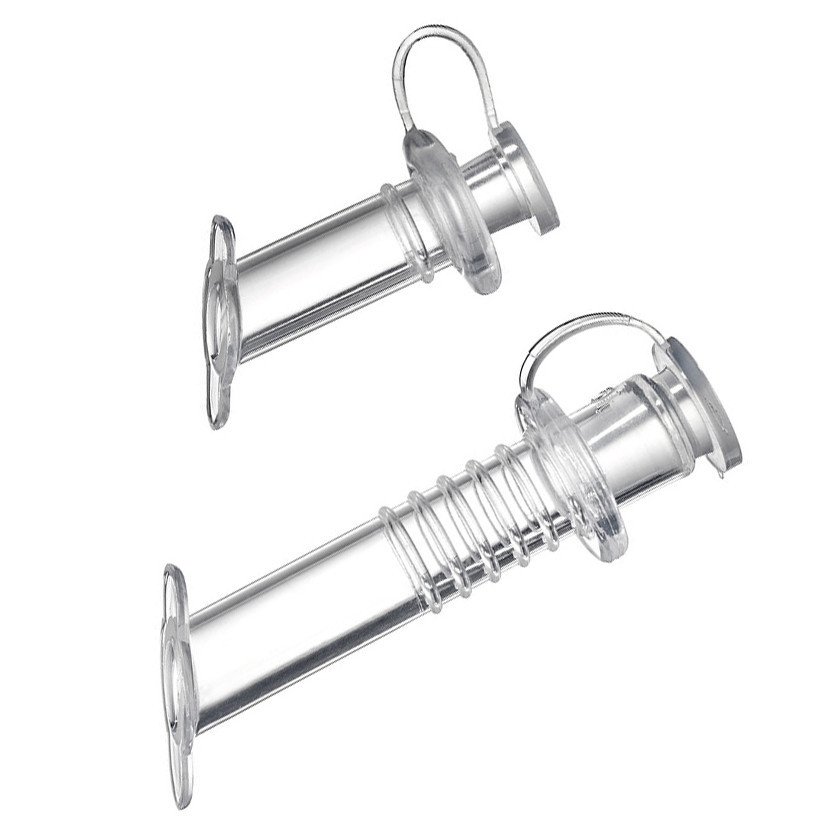

Montgomery® Long-Term Cannula

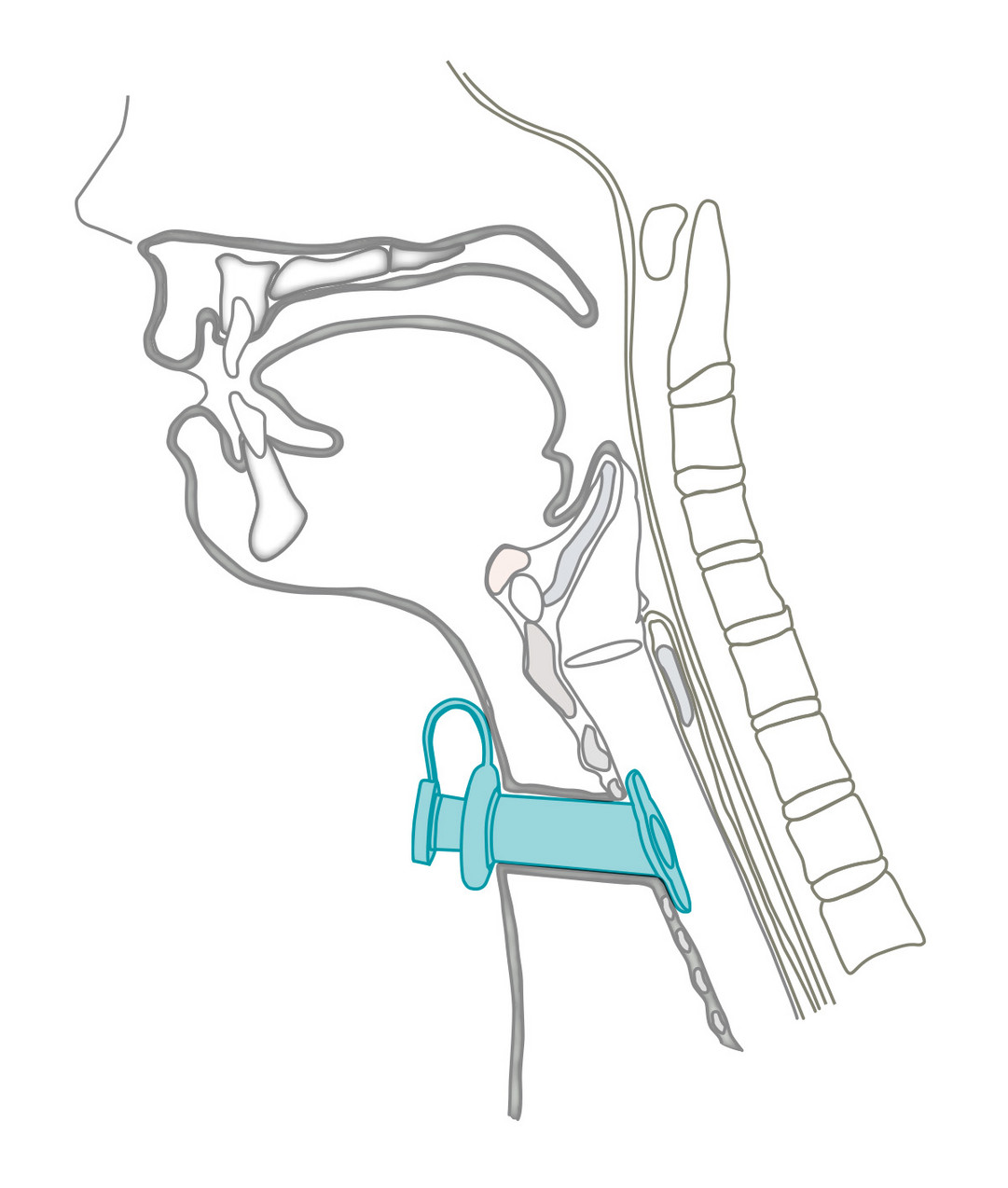

27°-angled flange to ensure that the tube rests horizontally when seated in the trachea - nothing protrudes into the trachea.

Dual-purpose groove along the axis of the tube rests in the “6 o’clock” position for orientation and serves as a drainage vent.

Highly polished surface that permits and encourages growth of epithelium between the trachea and the skin.

Ordering Information

Sterile, for single patient use. 1 Cannula, 2 Plug/Ring Sets, 1 IFU per carton. Accessories available separately (31xxxx) are supplied non-sterile.

SIZE	Dimensions (mm)		REF for the following stoma lengths (dimension “C”) in millimeters
SIZE	A	B	17–25	25–33	33–41	41–49	49–57	57–65
4	9	37	330425	330433	330441	330449	330457	330465
6	11	37	330625	330633	330641	330649	330657	330665
8	12	37	330825	330833	330841	330849	330857	330865
10	13	37	331025	331033	331041	331049	331057	331065
