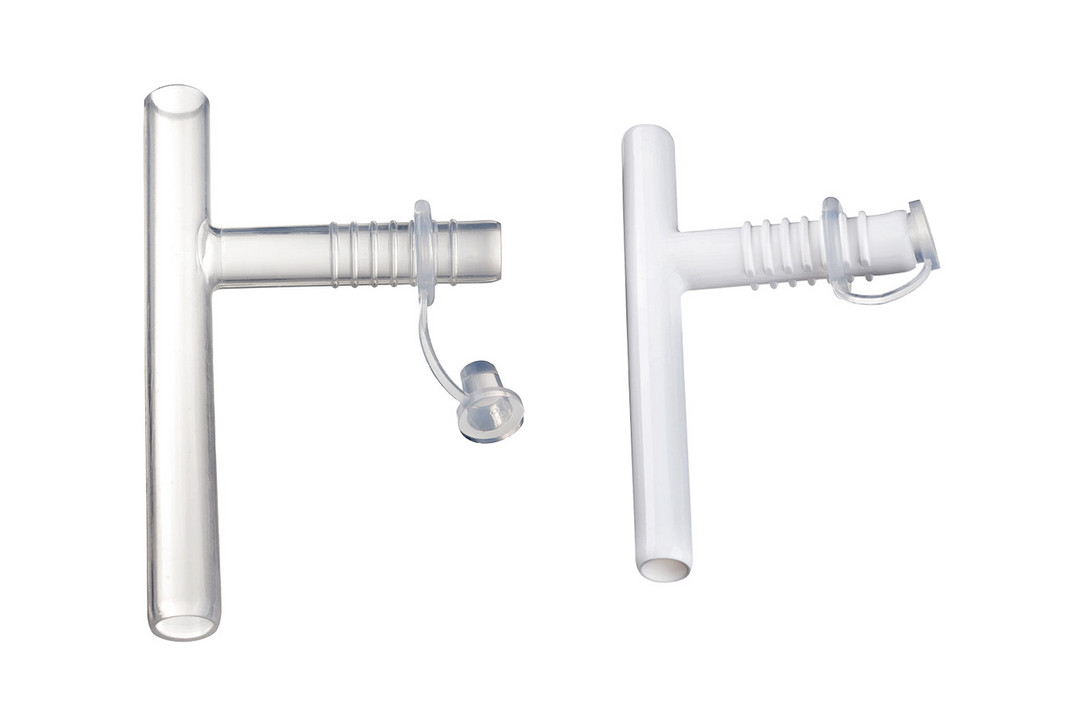

NEW Thoracic Montgomery Safe-T-Tube
Please contact us to check availability in your country.
The 5600 Series Thoracic Safe-T-Tube features an extra-long lower limb for thoracic applications.
The new 5600 Series Thoracic Safe-T-Tube features a slighty larger diameter of the extraluminal limb which allows for increased airflow.
As part of this redesign, two new sizes have been added and the lengths of the intraluminal limbs were changed for some sizes.
Ordering Information
Supplied sterile. Carton contains 1 Tube, 2 Plug/Ring Sets.
Accessories purchased separately (361xxx) are supplied non-sterile.
The new 5600 Series Thoracic Safe-T-Tube features a slighty larger diameter of the extraluminal limb which allows for increased airflow.
The new 5600 Series Thoracic Safe-T-Tube comes with two larger Plug/Ring Sets (REF 361XX6).
Size | REF | Dimensions (mm) | REF Accessories * | |||||||
Clear | Radiopaque | A | B | C | D | E | F | Plug/Ring Set | 15 mm Adaptor | |
8 | 560008 | 560008R | 8 | 83 | 15 | 60 | 55 | 8 | 361086 | 361087 |
9 | 560009 | 560008R | 9 | 90 | 17 | 65 | 55 | 8 | 361086 | 361087 |
10 | 560010 | 560010R | 10 | 99 | 19 | 70 | 55 | 10 | 361106 | 361107 |
11 | 560011 | 560011R | 11 | 101 | 20 | 70 | 65 | 11 | 361116 | 361117 |
12 | 560012 | 560012R | 12 | 108 | 22 | 75 | 65 | 11 | 361116 | 361117 |
13 | 560013 | 560013R | 13 | 111 | 24 | 75 | 65 | 12 | 361126 | 361127 |
14 | 560014 | 560014R | 14 | 118 | 26 | 80 | 65 | 12 | 361126 | 361127 |
15 | 560015 | 560015R | 15 | 122 | 28 | 80 | 65 | 14 | 361146 | 361147 |
16 | 560016 | 560016R | 16 | 129 | 30 | 85 | 65 | 14 | 361146 | 361147 |
* When ordering accessories separately, please note that only REF 361XXX will fit.
