Pediatric Montgomery® Safe-T-Tube™
3200 Series
The 3200 Series Pediatric Safe-T-Tubes™ feature an angled extraluminal limb to facilitate suctioning and airway management.
Additional Plug/Ring sets are available.
Ordering Information
Supplied sterile. Carton contains 1 Tube, 2 Plug/Ring Sets.
Accessories purchased separately (321xxx) are supplied non-sterile.

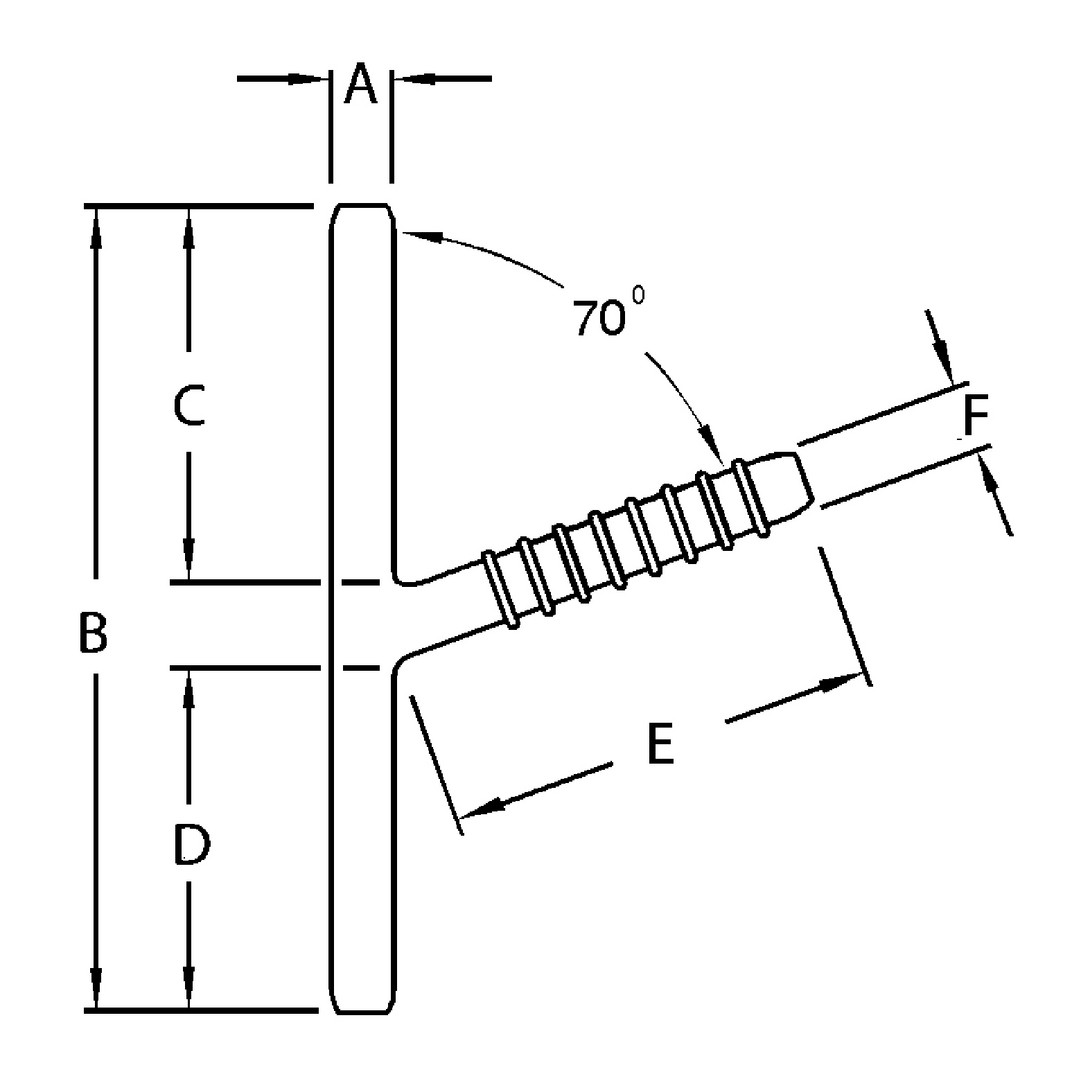

Size | REF | Dimensions (mm) | REF | ||||||
Clear | Radiopaque | A | B | C | D | E | F | Plug/Ring Set | |
6 | 320006 | 32006R | 6 | 94 | 46 | 42 | 45 | 6 | 321066 |
7 | 320007 | 32007R | 7 | 95 | 46 | 43 | 45 | 6 | 321066 |
8 | 320008 | 32008R | 8 | 96 | 46 | 42 | 45 | 8 | 321086 |
9 | 320009 | 32009R | 9 | 97 | 46 | 43 | 45 | 8 | 321086 |
